         Keeping Your AMC Drive Alive

Door Clip Types Illustrations
SW1 Contact me with any requests or questions.
amc oldAMCRAMBLER Home

Original door seals used a plastic door insert with a metal wire imbedded into the seal. Replacements door seals use a plastic clip instead of the wire which will insert into the original plastic insert.

Note: TYPE 1 : 63 CLASSIC/ AMBASSADOR Some early 64 CLASSIC/ AMBASSADOR production runs have some smaller holes without the plastic inserts on the sides and plastic inserts on the bottom. USE DSR0131 for front and DSR0121 ONLY FOR THOSE.

TYPE 2 Uses Tubular clips and can be use on late 64 Classic/Ambassadors who have plastic inserts all around by removing them.

Alternate use of TYPE 2.  TYPE 2 can be used instead of TYPE 1 by removing all plastic inserts and drilling out the smaller holes to                                                                             match the large holes.

HT2

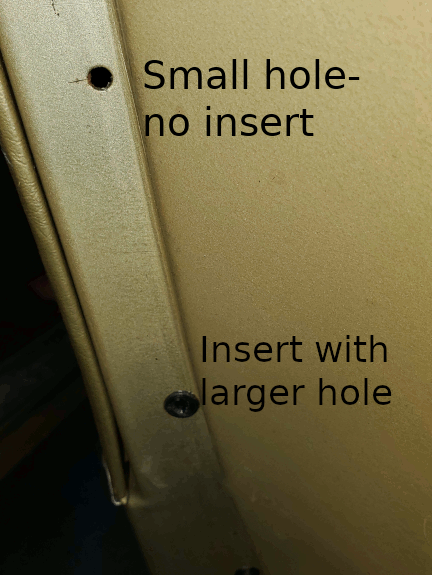

TYPE 1 Small hole with larger hole and plastic insert
63 CLASSIC/ AMBASSADOR Some early 64 CLASSIC/ AMBASSADOR

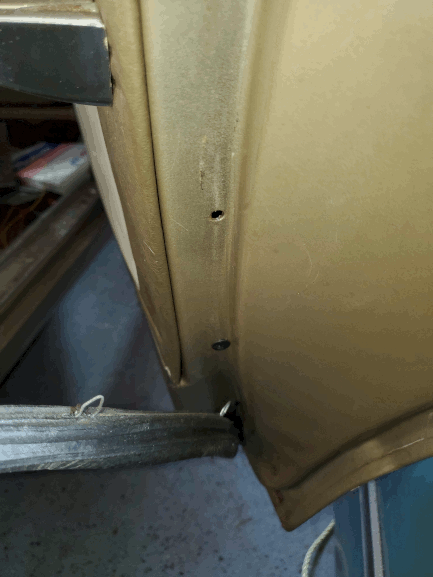

oem clipTYPE 1 OEM wire clip to insert .

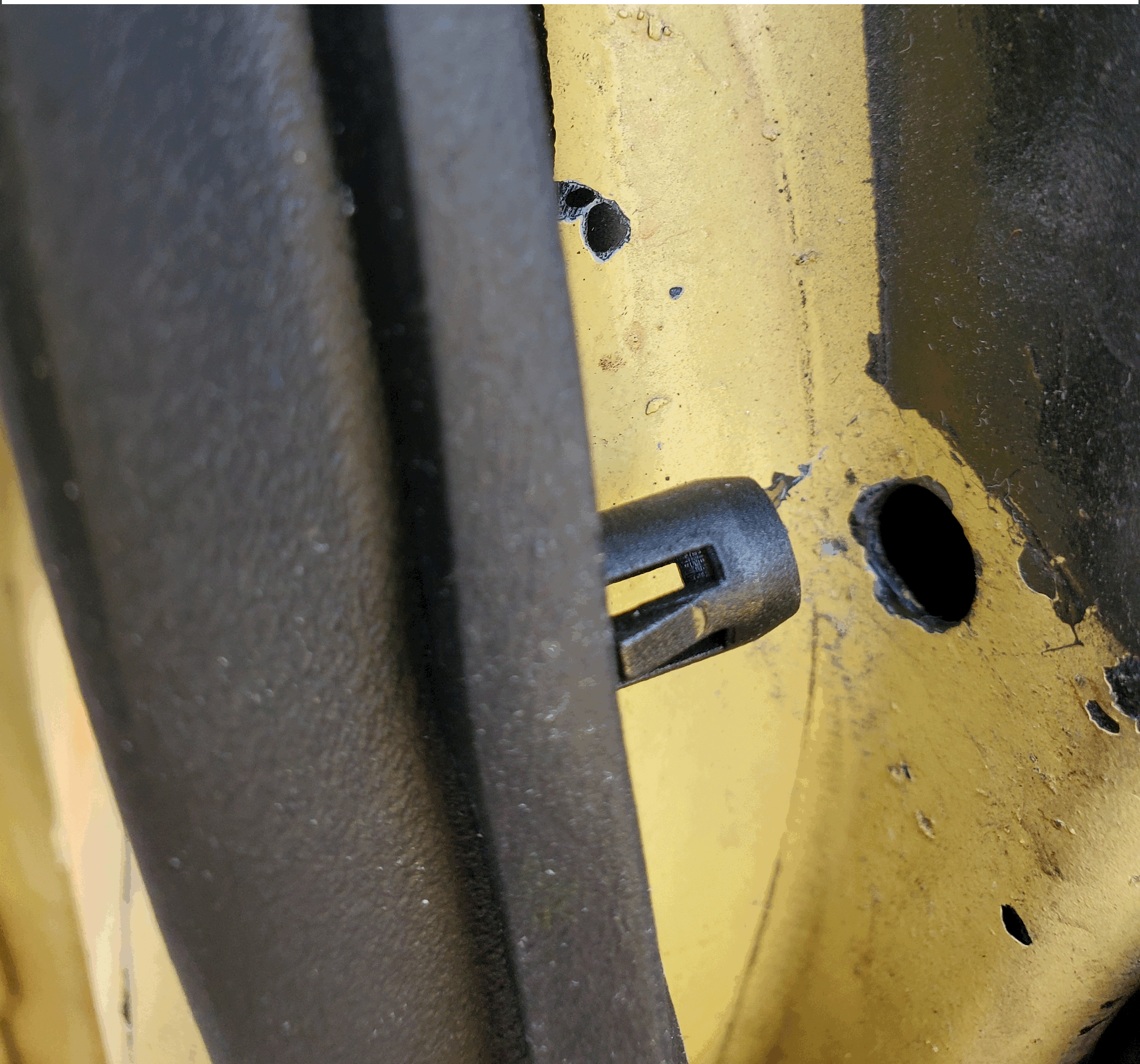

largeType 2  late 64 and up tubular clip inserted into a large hole a 5/16 hole.

Part #

          2 door SEDAN                (not 2dr hard tops)

4 DR FRONT

4DR REAR

DSR010
TYPE 2

63 - 66 CLASSIC/ AMBASSADOR
64 - 69 AMERICAN



DSR012
TYPE 2



LATE 64- 66 CLASSIC/ AMBASSADOR
64- 69 AMERICAN

DSR0121
TYPE 1



63- Early 64 CLASSIC/ AMBASSADOR

DSR013
TYPE 2


LATE 64- 66 CLASSIC/ AMBASSADOR
64- 69 AMERICAN

67- 78 REBEL / AMBASSADOR / MATADOR 4DR / WAGON


DSR0131
TYPE 1


63- Early 64 CLASSIC/ AMBASSADOR
